Material Used: 6061 Aluminium
Individual Components CAD
Shaft
Circular Frame - Sheet 1

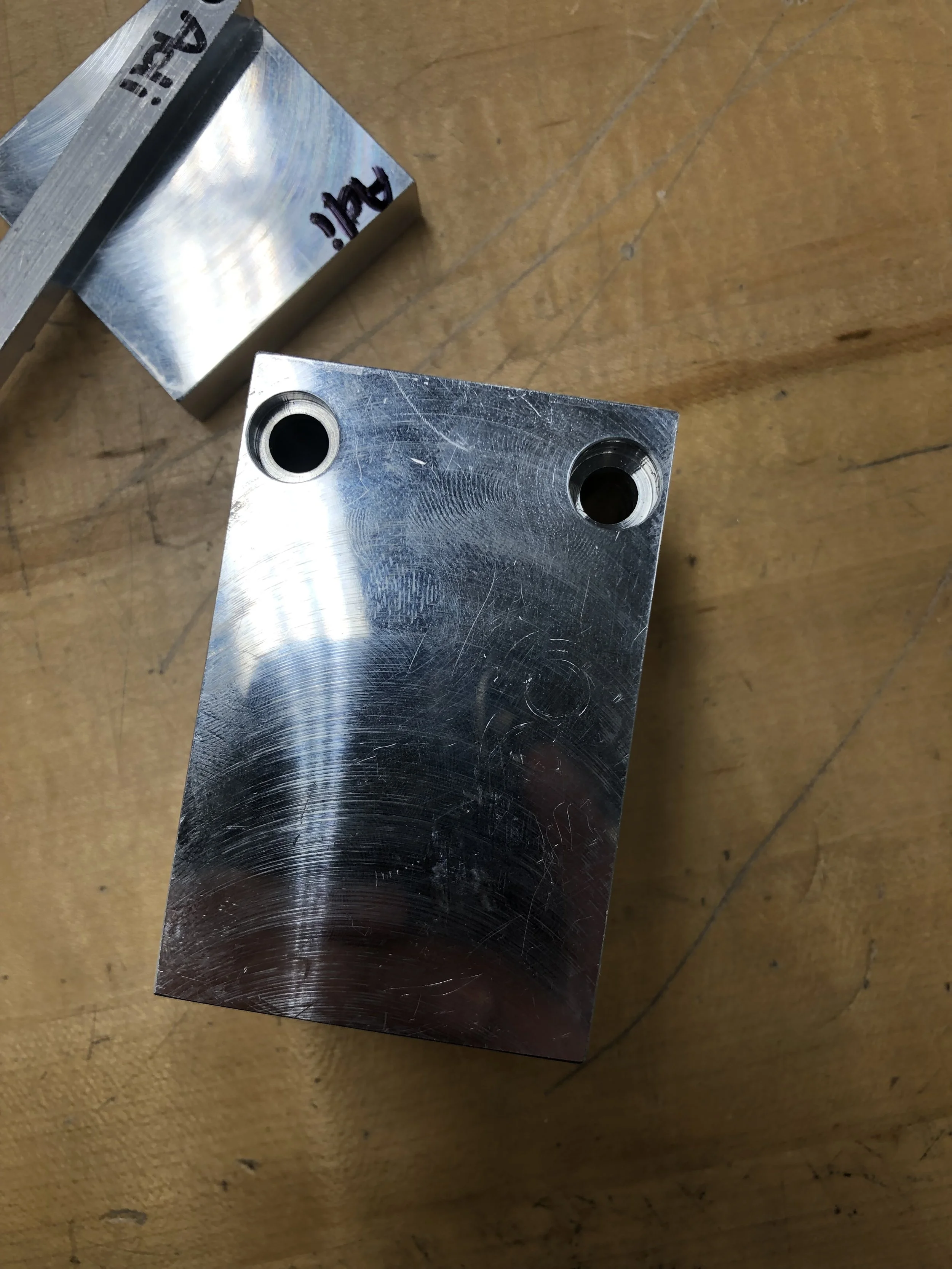

Machined Components

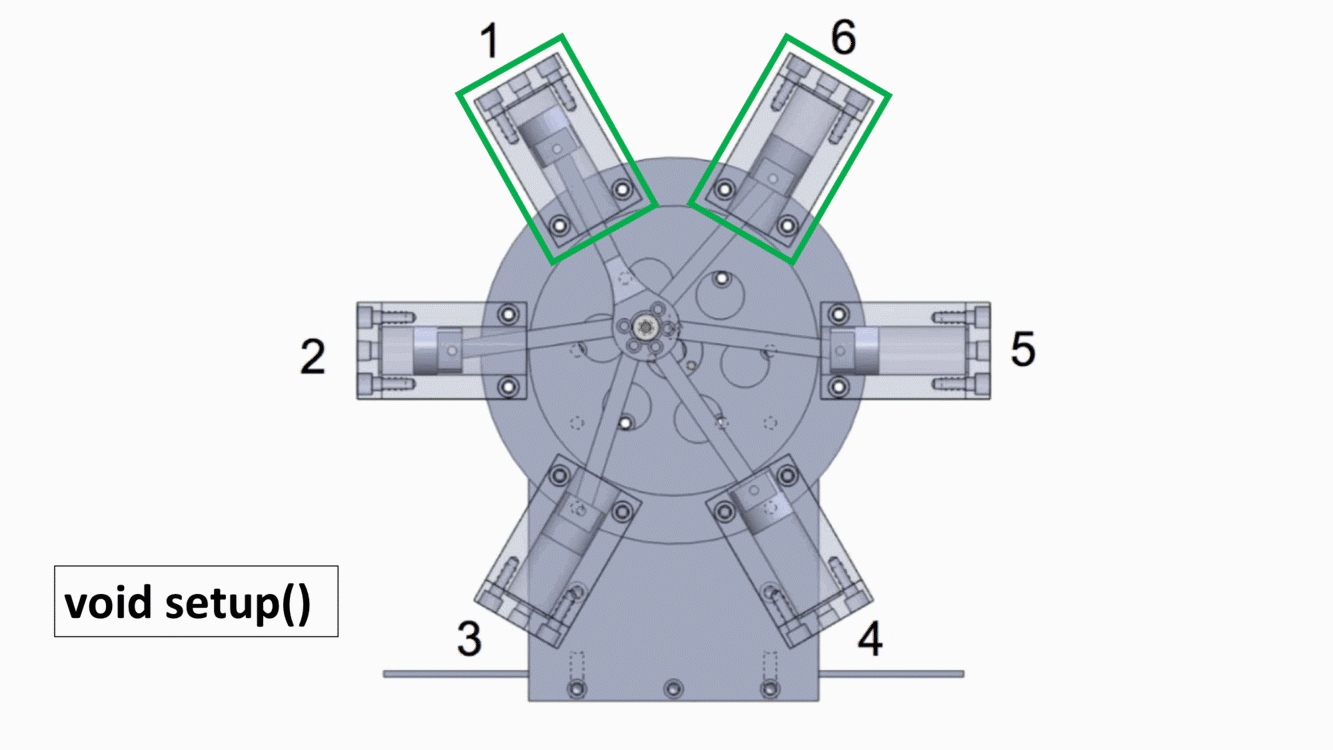

Combined Air Motor
Circular Frame - Sheet 2
Project Description
No.1 Connecting Rod

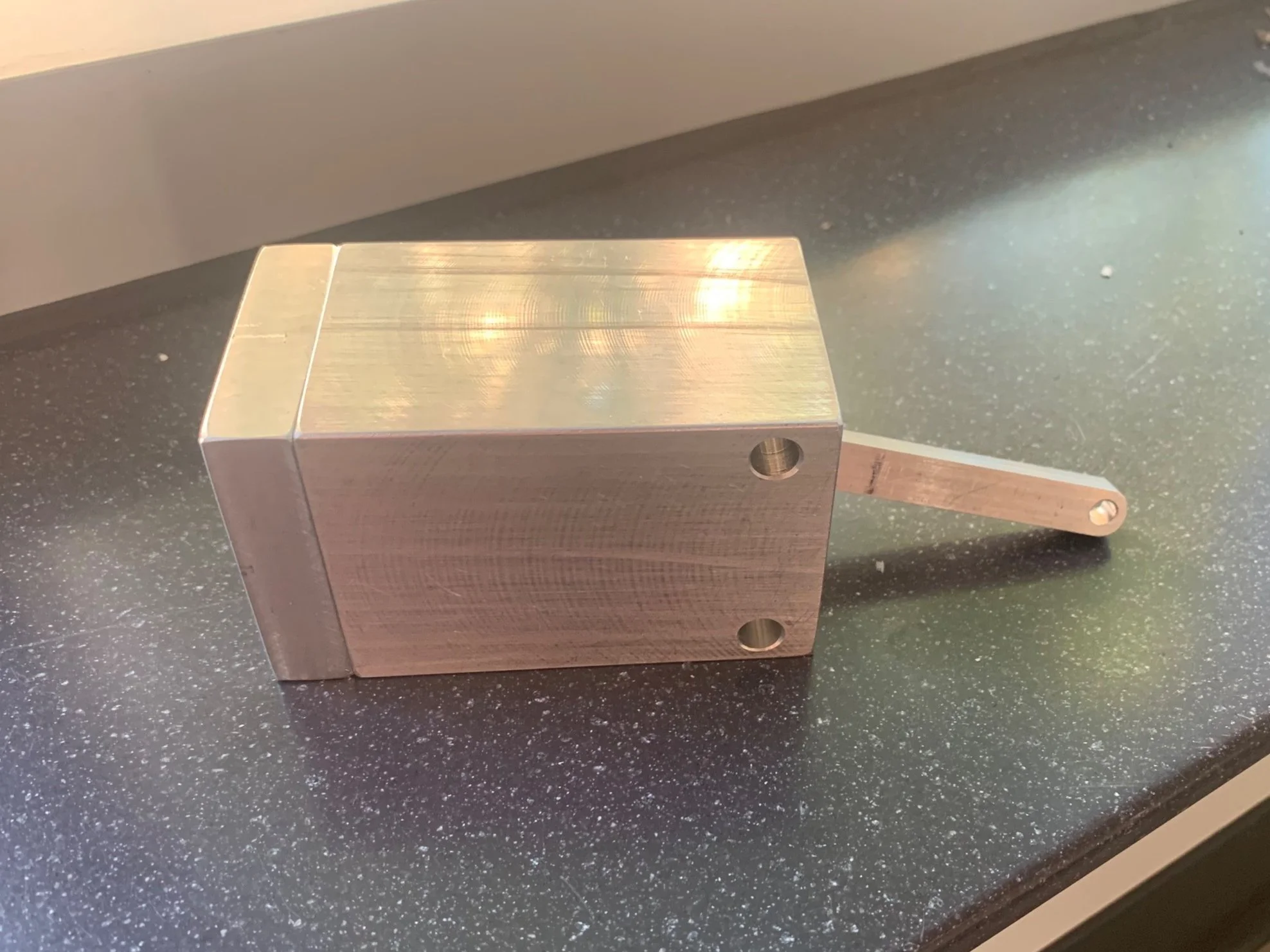

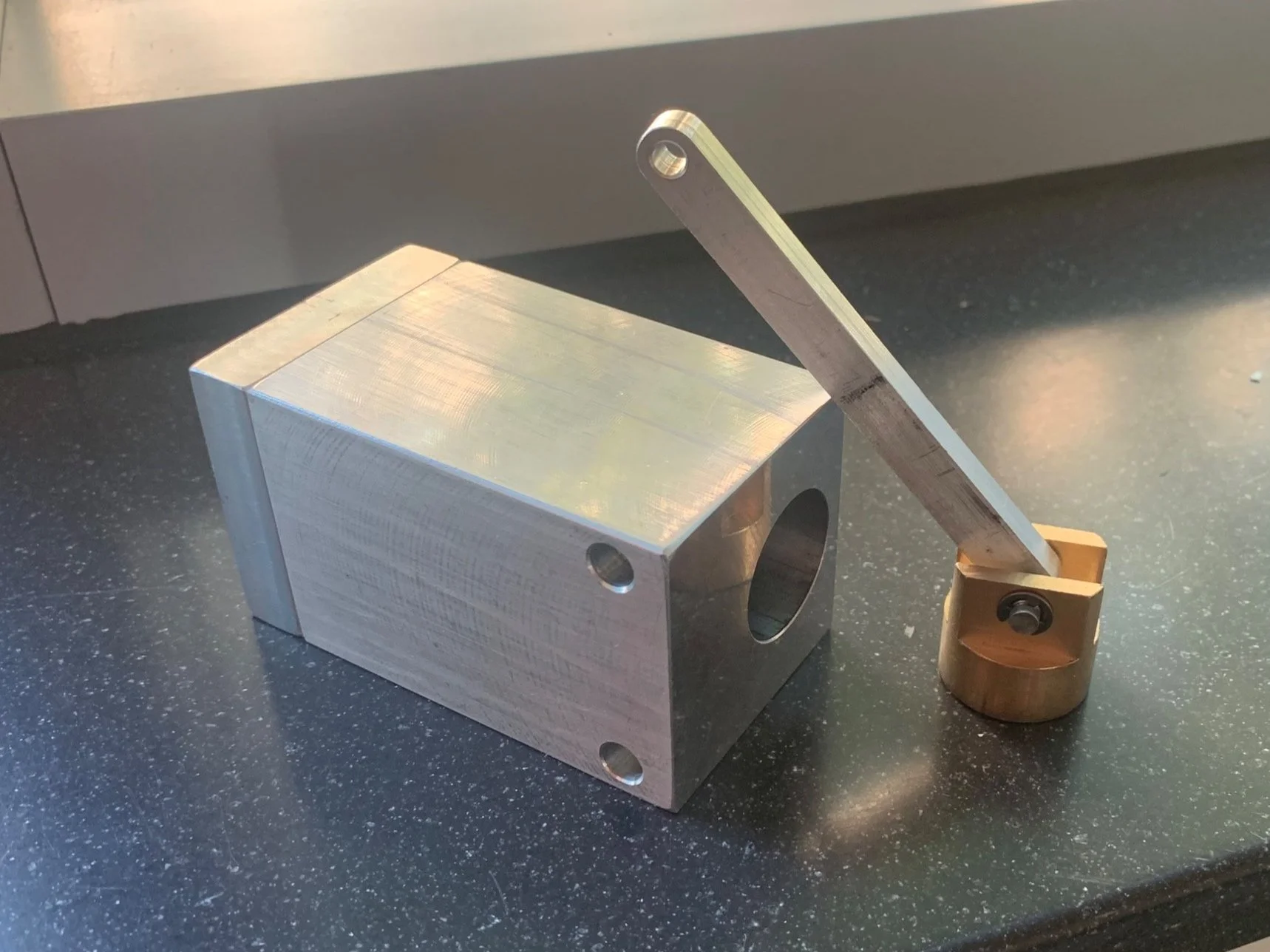

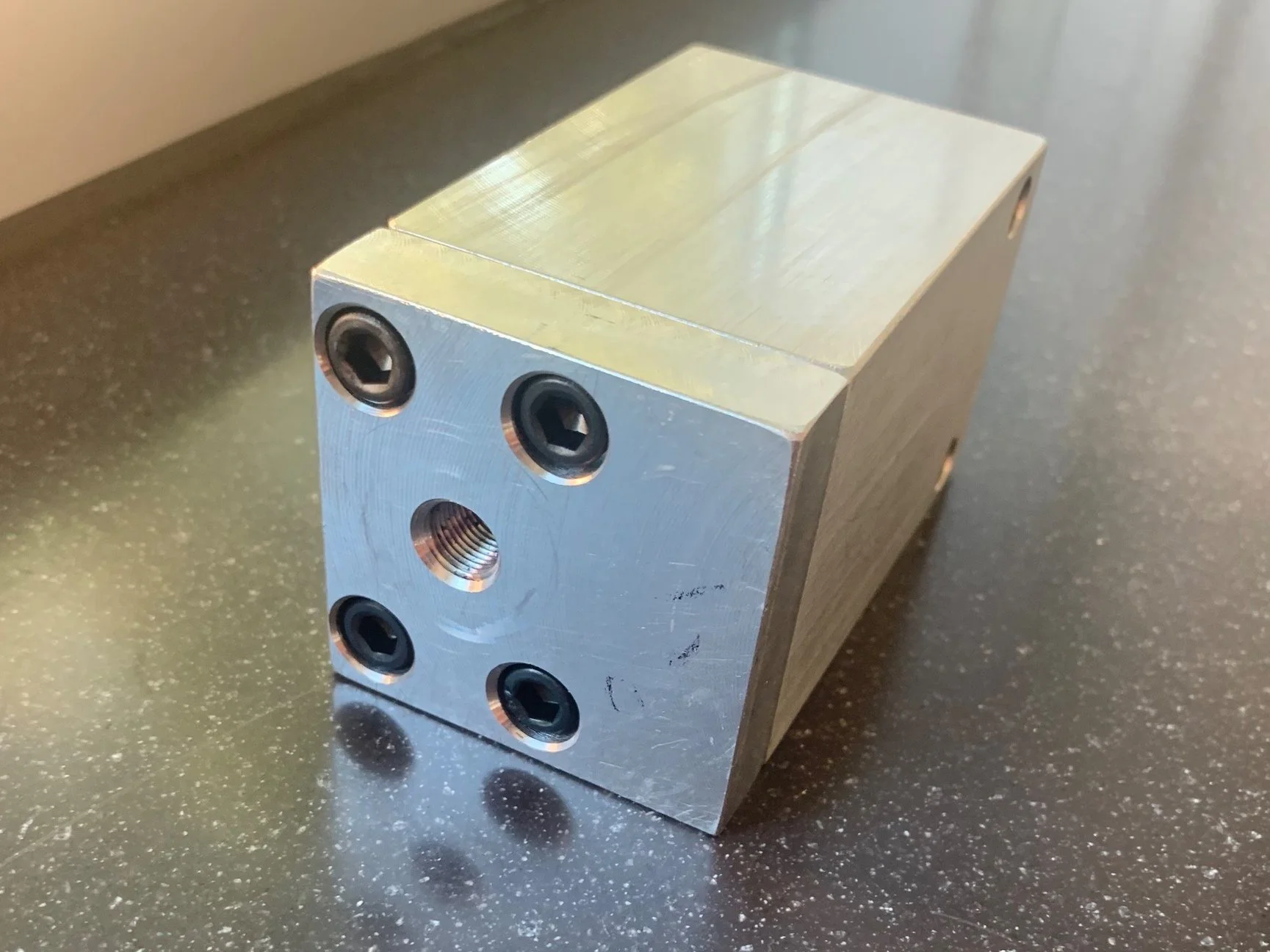

Manufactured a precision-engineered piston, cylinder block, connecting rod, and end cap within ±0.001” tolerances in a machine shop environment.
Machining Techniques Used
Fly Cutting, Drilling, Boring, Reaming, and Threading
